Genuine Honda C50G (1986)

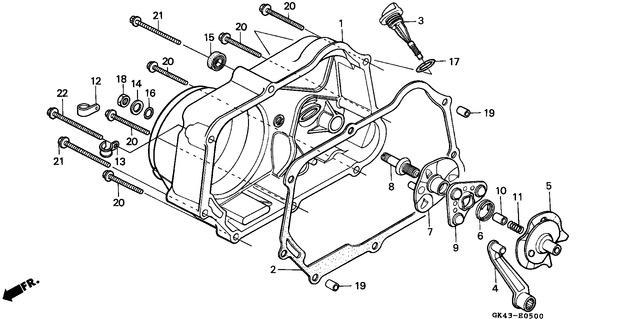

E-05 Right Crankcase Cover (C50Df / G/Dg/J/N/Sn)

Genuine Honda C50G (1986) E-05 RIGHT CRANKCASE COVER (C50DF / G/DG/J/N/SN) Motorcycle Parts
Ref Part No Area Colour Code Description Price (Incl. Vat) Quantity Required
1 11330-GB4-680 Gr No Colour Code Cover Comp., R. Crankcase €122.65 per piece 1
2 11394-GW8-681 Gr No Colour Code Gasket, R. Crankcase Cove €11.66 per piece 1
3 15651-179-701 Gr No Colour Code Gauge, Oil Level €7.74 per piece 1
4 22811-040-020 Gr No Colour Code Lever, Clutch €16.45 per piece 1
5 22820-918-020 Gr No Colour Code Plate Comp., Clutch Cam €12.32 per piece 1
6 22825-046-000 Gr No Colour Code Spring, Cam Plate Side €1.66 per piece 1
7 22830-041-000 Gr No Colour Code Plate Comp., Clutch Lifte €10.18 per piece 1
8 22846-GB4-770 Gr No Colour Code Bolt, Clutch Adjusting €3.94 per piece 1
9 22860-046-000 Gr No Colour Code Retainer Comp., Ball €4.28 per piece 1
10 25551-918-007 Gr No Colour Code Through, Oil €3.13 per piece 1
11 25555-065-000 Gr No Colour Code Spring, Oil Through €2.06 per piece 1
13 32921-039-000 Gr No Colour Code Clip, Dynamo Cord €4.20 per piece 1
14 90485-040-000 Gr No Colour Code Washer, 8Mm €2.43 per piece 1
15 91202-KFL-841 Gr No Colour Code Oil Seal 13.8X24X €4.42 per piece 1
16 91303-001-010 Gr No Colour Code O-Ring, 8Mm €3.28 per piece 1
17 91307-035-000 Gr No Colour Code O-Ring, 18X3 €1.69 per piece 1
18 94030-08000 Gr No Colour Code Nut, Hex., 8Mm €0.99 per piece 1
19 94301-08120 Gr No Colour Code Pin A, Dowel, 8X12 €1.69 per piece 2
20 96001-0604000 Gr No Colour Code Bolt, Flange, 6X40 €1.43 per piece 5
21 96001-0606500 Gr No Colour Code Bolt, Flange, 6X65 €1.84 per piece 2
22 96001-0608000 Gr No Colour Code Bolt, Flange, 6X80 €1.73 per piece 1
